PRECISION MACHINING CENTER
Spacenex is AS9100 Rev D certified company having state-of-the-art facilities of both machining & surface treatment catering to various sectors. Its production facility consists of imported high precision CNC machineries which are capable to achieve tight tolerances along with consistent repeatability. Shop floor has world class featuressuch as climate control facility, Epoxy floors, Microscopic deburring cell, adequate lighting arrangements, power back up and Ultrasonic cleaners etc;
Engineering team is very well equipped with latest CAM software’s and separate team is dedicated for in-house fixture manufacturing.
| MACHINE Type | MAKE |
No. of Machines 10 nos |
Spindle RPM |
ENVELOPE in mm | |||
|---|---|---|---|---|---|---|---|
| Dia | X | Y | Z | ||||
| TURNING | DOOSAN | 1 | 4500 | 300 | 550 | ---- | ---- |
| LMW | 1 | 4500 | 165 | 480 | ---- | ---- | |
| TURN MILL | DOOSAN | 1 | 4500 | 300 | 510 | ---- | ---- |
| MILLING - 3 Axis | DOOSAN | 2 | 8000 | ---- | 800 | 450 | 510 |
| MILLING - 3 Axis | MAPLE | 1 | 10000 | ---- | 600 | 450 | 510 |
| MILLING - 3 Axis | TAKUMI | 1 | 10000 | ---- | 800 | 450 | 510 |
| MILLING - 4 Axis | HASS VF -2 | 1 | 8000 | ---- | 700 | 400 | 460 |
| SUAYUD | 1 | 8000 | ---- | 800 | 450 | 510 | |
| MILLING - 4 Axis (CRADLE BASE - POSITION) |
TAKUMI | 1 | 10000 | ---- | 1000 | 500 | 520 |
QUALITY
Spacenex believes in quality planning at every stage and process. We plan to implement robust international standards such as AS-9100 and NADCAP. Please refer Roadmap section for further details. Spacenex also is installing the highly advanced inspection & testing capabilities that are on par with any other matured company. We have below inspection capabilities to support precision machining.
1. Carl Zeiss CMM (ConturaG2)

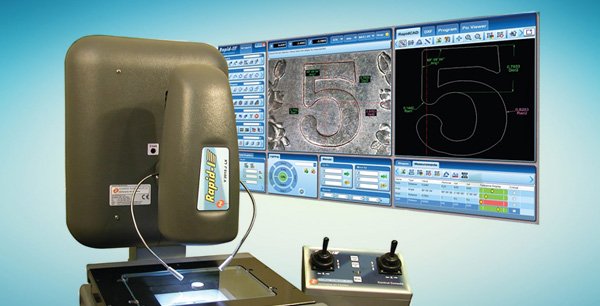

2. Rapid-I VMS (Video Measuring System) and contour tester
Rapid-I v4020JLX.Version 5.0 Software with powerful graphical overlay features, seamless CAD integration, automated report generation in MS Excel®, Snap-shot/Frame Save features, etc. This also has full CNC system and 2D Non - Contact Contour tracing module (XZ or YZ plane).

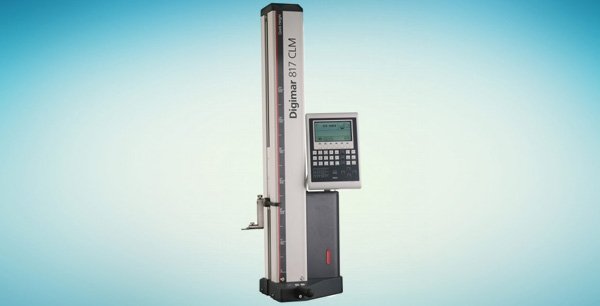

3. MAHR 2D height master
